SuperSub XXL

Overview

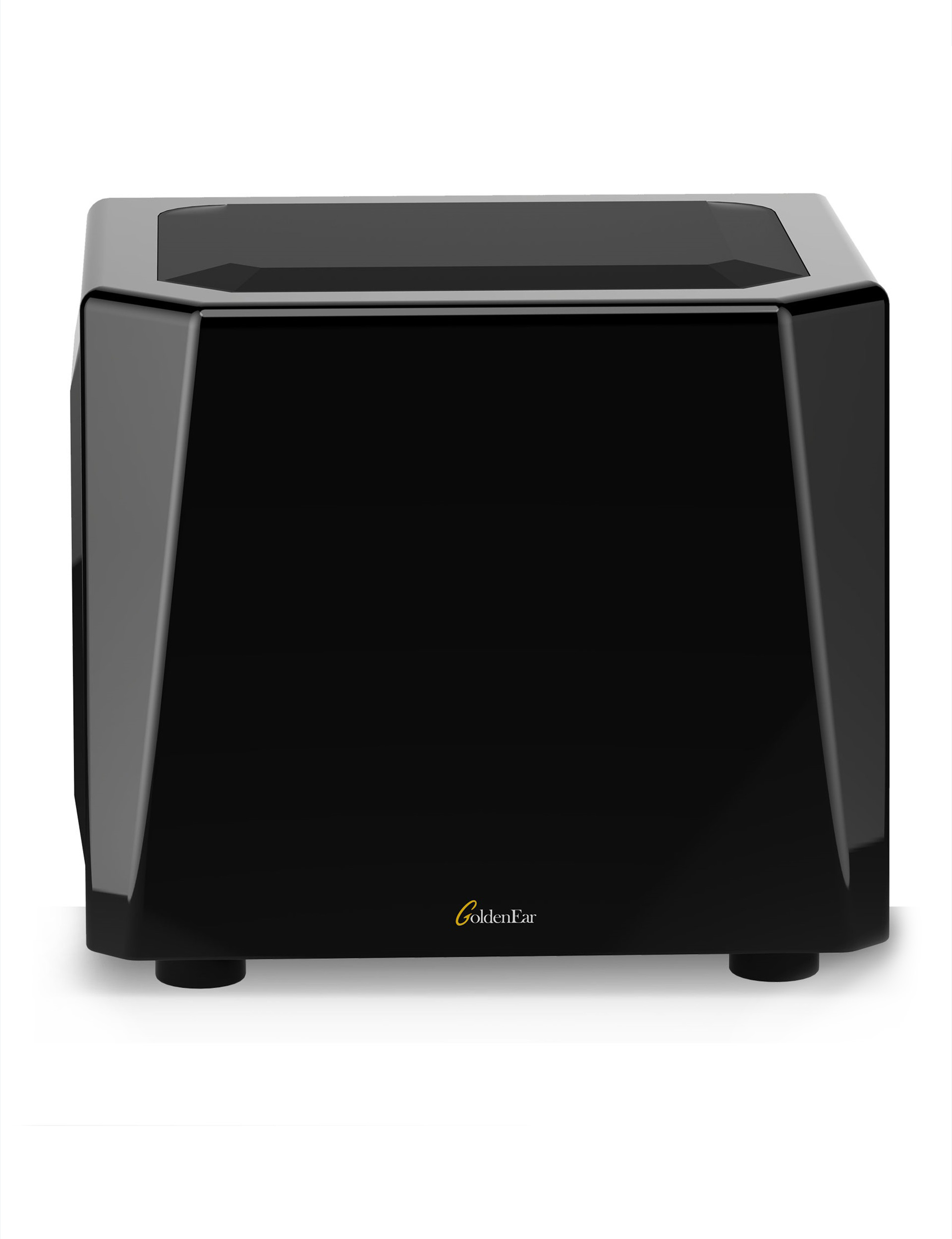

Housed within the gorgeous piano-gloss black enclosure are two horizontally-opposed 12˝ ultra-long-throw active drivers and two vertically-opposed 15˝ x 13˝ planar back-wave-driven radiators, driven by a 1600 watt Class D Digital amplifier. This dual-plane, patented* dynamic inertial-balancing preserves and focuses all the energy produced by the transducers in order to more effectively move the air in the room, rather than wasting energy moving the box. It also enables you to hear all the fine subtle details in your recordings. The benefit is an achievement in state-of-the-art, best subwoofer performance that, not only “rocks the house”, as Big Picture Big Sound’s Chris Boylan raved, but is also, “strong, pure and controlled” as Sound&Vision magazine’s Mark Fleischman wrote. With two active drivers separated horizontally in space, as well as two passive radiators separated vertically, the driver to-room coupling is distributed much more smoothly, for in-room bass performance that can’t typically be achieved with a single subwoofer.

Specifications

Driver Complement

Two 12" Long-Throw High-Output Bass Driver

Two 13" x 15" Quadratic Planar Back-Wave-Driven Radiators

Passive Radiator Surface Area 103.79in2 (843.84cm2)
Frequency Response 25Hz–160Hz (-6dB on axis, anechoic)
Amplifier 2000W peak/1000W RMS, DSP-Controlled, MOSFET Output Stage (50-ohm load – 5 seconds sustained 55Hz sinusoidal signal) Note: Not tested to FTC standard (8-ohm load – 5 minutes sustained 1kHz sinusoidal signal)
LFE Line-Level Input Unfiltered (no low pass), direct-coupled
Right/Left Line-Level Input Variable Low-Pass from 40Hz–150Hz
Power Requirements/Consumption

Low Voltage Model: 120V at 50 or 60Hz/1600 Watts

High Voltage Model: 240V at 50 or 60Hz/1600 Watts

Dimensions 19.75" (50cm) W x 15.9" (40cm) D x 17.6" (44.6cm) H (with feet)
Weight Product: 82lbs (37.2kg); Shipping: 93lbs (42.2kg)
