BRX (Bookshelf Reference X)

Overview

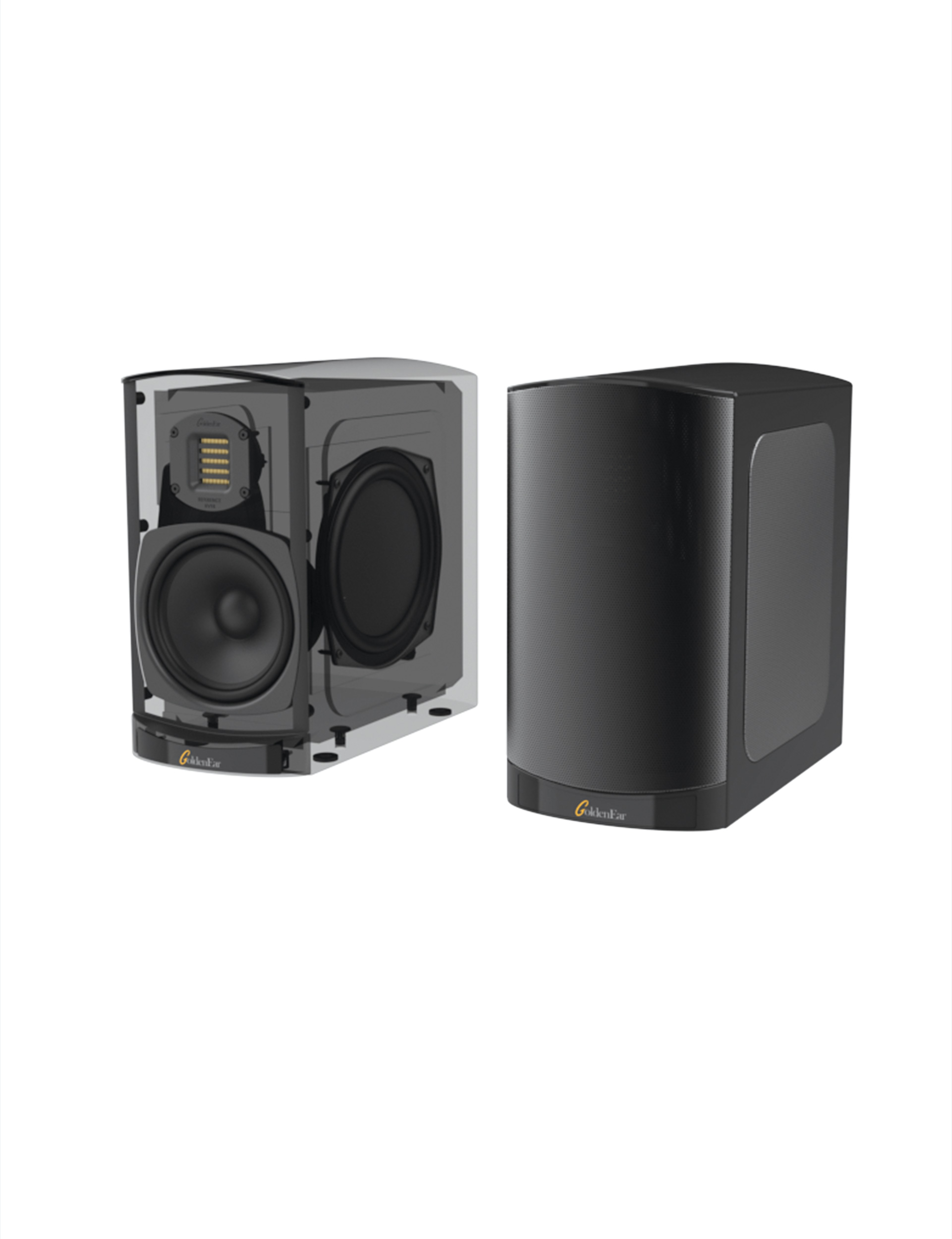

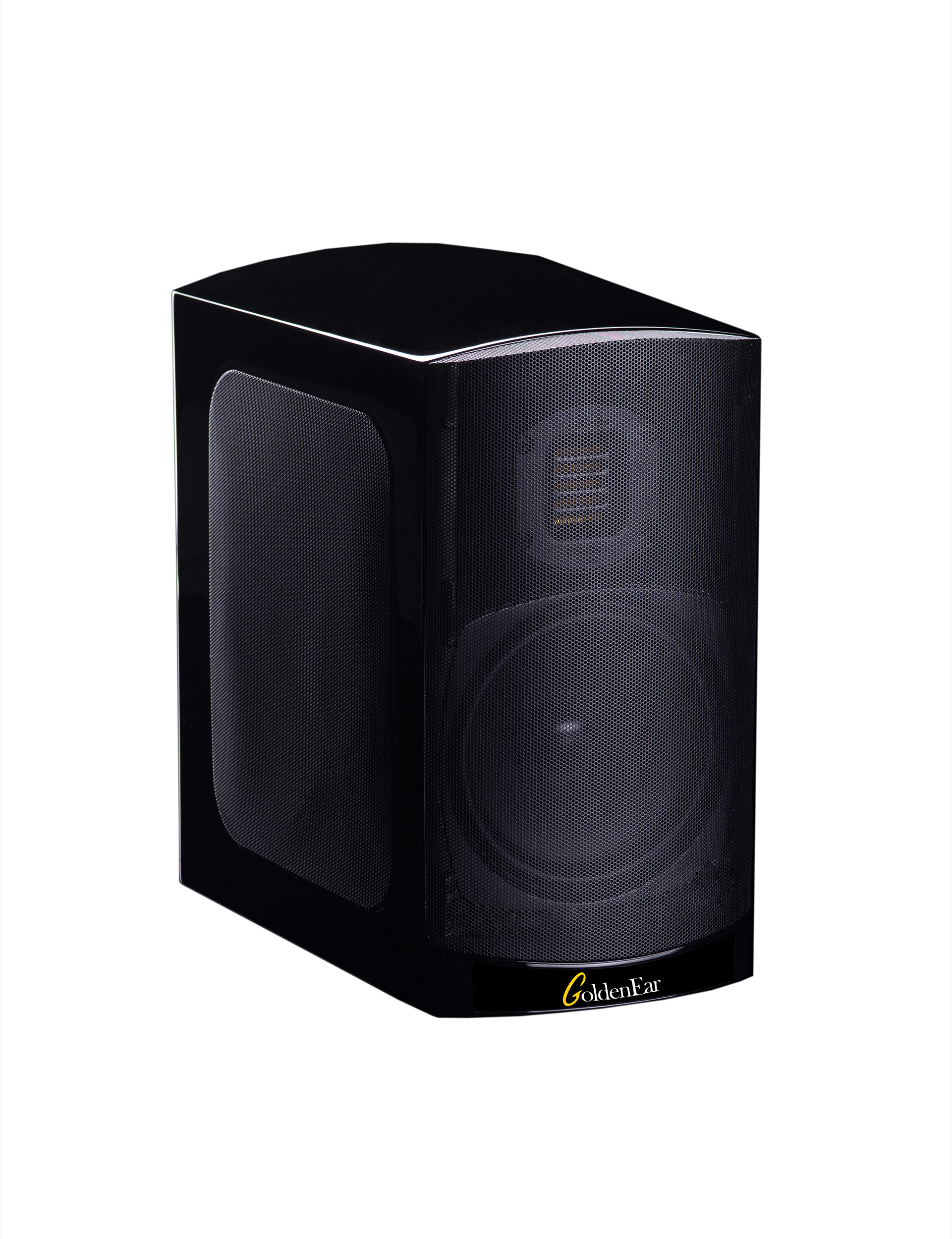

The BRX incorporates a 6” cast-basket bass/midrange driver, basically the same driver used in the Triton Reference . It features a Reference High-Velocity Folded Ribbon AMT Tweeter. The two drivers are perfectly blended with a unique “balanced crossover”. A pair of inertially balanced 6.5” planar infrasonic radiators are located on either side of the cabinet for tight, quick, powerful bass response. The beautifully styled cabinet is luxuriously finished in hand-rubbed piano black lacquer. The BRX delivers superior reference level performance for both two channel as well as home theater systems of the highest quality, with extraordinary three-dimensional imaging and high-resolution clarity.

Specifications

Driver Complement

One Reference High-Velocity Folded Ribbon AMT Tweeter

One 6" High-Definition Cast-Basket Mid/Bass Reference Driver

Two 6.5" Side-Mounted Planar Low-Frequency Radiators

Passive Radiator Surface Area 24.1in2 (155.48cm2)
Efficiency 88dB 1W/1M @ 4Ω (2.83V/1M)
Frequency Response 42Hz–25kHz typical (-6dB on axis @ 65Hz, anechoic bass response)
Nominal Impedance
Recommended Amplification 20 - 250Wpc
Dimensions 8.05" (20.5cm) W x 12.3" (31.1cm) D x 12.1" (30.8cm) H (includes feet)
Weight 12lbs (5.44kg)
